Installing a sliding glass door is a major but manageable DIY project — it involves building or confirming a rough opening, setting a heavy pre-assembled door unit, and weatherproofing it to prevent air and water infiltration. Most sliding glass doors (also called patio doors) come as pre-assembled units with the frame included. This guide walks you through framing the opening, setting the unit level and plumb, fastening it, and sealing it properly inside and out.
What You’ll Need
Tools
- Tape measure
- 4-foot and 2-foot level
- Circular saw and reciprocating saw
- Drill and impact driver
- Framing square
- Chalk line
- Pry bar
- Caulk gun
- Utility knife
- Hammer
- Safety glasses and work gloves
Materials
- Pre-assembled sliding glass door unit
- Header lumber (doubled 2×10 or LVL — sized per local building code for the span)
- Jack studs and king studs (2×4 or 2×6 to match wall)
- Pressure-treated sill plate lumber (for exterior door bottom)
- Cedar shims
- Self-adhering flashing tape (4-inch minimum width)
- Metal drip cap flashing
- Housewrap tape
- Exterior silicone or polyurethane caulk
- Backer rod
- 3-inch structural screws
- Finish nails or 16-gauge nailing strips
- Rigid foam insulation (for gaps)
- Interior casing trim
Safety Precautions
Sliding glass door units are extremely heavy — standard 6-foot wide units weigh 150–300 pounds, and 8-foot units can exceed 400 pounds. Always use at least three people for the lift: two to carry and one to guide from inside. Use door lifting suction cups if available, as they give a secure grip on the glass panel.
If you are cutting a new opening in an exterior wall, determine whether the wall is load-bearing before removing any studs. Load-bearing walls require a temporary support wall and a correctly sized structural header. Consult a contractor or structural engineer if you’re unsure.
Wear safety glasses whenever cutting framing or siding. Keep the site clear of debris during the lift — a dropped door unit can shatter and cause severe injury.
Understand the Door Unit Components
A pre-assembled sliding glass door unit consists of: the outer frame (jamb sides, head jamb, and sill), the fixed stationary panel (does not move), the sliding panel (rides on rollers in the sill track), a screen door (usually included), and the hardware (lock, handles, rollers). The entire unit ships assembled — the glass panels may be shipped separately from the frame on large units.
The standard rough opening for a sliding glass door is the door unit’s frame width plus 1 inch, and frame height plus 1/2 inch. Always use the manufacturer’s specified rough opening dimensions — they vary by brand and product line.
How to Install a Sliding Glass Door
Step 1: Prepare the Rough Opening
If you’re replacing an existing door or sliding door, remove the old unit. Strip off the interior casing and door stop trim, then pry the exterior casing away. Cut the caulk bead around the exterior frame with a utility knife. If the old frame has a nailing fin, cut through it with a reciprocating saw. Remove the panels first (they’re lighter), then remove the frame. Check the rough opening for square and plumb — measure diagonally corner to corner. Both diagonal measurements must match within 1/4 inch for the opening to be square.
If this is a new opening, cut the opening per Step 2 of the “How to Install a Bay Window” approach: frame with a proper header (see materials list), install jack and king studs, and cut the exterior wall. Install a pressure-treated sill plate at the bottom of the rough opening.
Step 2: Flash the Rough Opening Sill
The sill is the most critical area to waterproof. Apply self-adhering flashing tape to the sill (bottom horizontal surface of the rough opening), wrapping it up each side 6 to 8 inches. Fold the flashing over the sill and press firmly. Then flash each side (from bottom up), overlapping the sill flashing. Leave the head (top) un-flashed for now — you’ll do the head after the door is set. The sill flashing should slope slightly to the exterior for drainage if possible.
Step 3: Apply Sill Caulk
Run two parallel 3/8-inch diameter beads of exterior silicone caulk on the sill flashing, across the full width where the door frame sill will sit. The caulk creates a water-resistant seal under the door sill and fills any small voids. Do not skip this step — a dry-set sill is a common source of water infiltration under sliding doors.
Step 4: Set the Door Frame Into the Opening
With helpers on both sides, lift the sliding door frame (without the glass panels if they ship separately) into the rough opening from the exterior side. Lower the sill onto the prepared sill caulk. Position the frame so the exterior casing or nailing fin is against the exterior wall sheathing on all sides. Do not fully press the frame in until it is roughly level.
Step 5: Level the Sill
Place a level across the sill track from side to side. Slide shims under the sill at each end to bring it perfectly level. This step is critical — an unlevel sill causes the sliding panel to drift open or closed on its own. Once level, tack-nail through the door frame into the framing on one side to hold while you check the rest of the unit.
Step 6: Plumb and Square the Frame
Check the hinge jamb (stationary panel side) for plumb with a 4-foot level. Add shims behind the jamb at the top and bottom until it reads plumb. Then check the latch jamb (sliding panel side) — it should also be plumb. Check diagonal measurements across the frame opening: if they match, the frame is square. Adjust shims as needed until plumb, level, and square are all achieved simultaneously.
Step 7: Fasten the Frame
Drive 3-inch structural screws or 16d nails through the door frame (through shims) into the rough framing at the following points: every 16 inches along each side jamb, and at least four points along the head. At the hinge jamb, drive two 3-inch screws at the middle and two at the top, penetrating into the rough framing a minimum of 1.5 inches. Check plumb and level after each fastener — sometimes driving fasteners shifts the frame slightly.
Step 8: Install the Glass Panels
If the glass panels were removed or shipped separately, install them now. The fixed panel installs first: tilt it into the outer track at the top, then lower the bottom into the outer sill track. Secure it with the manufacturer’s anti-lift clips or screws at the top. Install the sliding panel into the inner track the same way — tilt the top into the upper inner track, lower the rollers onto the inner sill track. Adjust the roller height screws at the bottom of the sliding panel so the panel glides smoothly and the top rail clears the head jamb with about 1/8 inch of clearance.
Step 9: Weatherproof the Exterior
Apply flashing tape to the top (head) of the rough opening, overlapping the side flashings. Install metal drip cap flashing at the very top, tucking it under the existing housewrap or siding. Lap the existing housewrap over the sides of the door frame and tape all seams. Apply exterior caulk around the perimeter of the door frame’s nailing fin, leaving two small (1/2-inch) gaps at the very bottom of each side for moisture weep drainage. Do not caulk the sill drain holes at the bottom of the door sill track.
Step 10: Trim Shims, Insulate, and Finish Interior
Score and snap shims flush with the interior face of the door frame. Fill gaps between the frame and rough framing with rigid foam insulation or fiberglass batt (not expanding foam, which can bow the frame). Install interior extension jambs if needed for wall thickness. Nail interior casing trim around the door opening with finish nails, setting nail heads just below the surface. Install the lock and handle hardware per the manufacturer’s instructions. Install the screen door panel last.
Adjusting the Sliding Panel
After installation, the sliding panel may need adjustment so it slides smoothly and the lock aligns correctly. At the bottom of the sliding panel, there are two roller height adjustment screws — typically accessible through small plugs on the interior face of the panel frame at the bottom corners. Turning clockwise raises that corner, counterclockwise lowers it. Adjust until the panel top rail has even clearance to the head jamb across its full width, and the lock engages without forcing.
Pro Tips and Common Mistakes
- Always level the sill first, before anything else: Every other dimension follows from a level sill. Skipping this step causes drift, binding, and locking problems that are difficult to correct after the fact.
- Leave the sill drain holes open: The door sill has drain holes or channels at the bottom to weep water. Never caulk these. If they’re blocked, water ponds in the track and leaks inside.
- Don’t skip anti-lift clips on the fixed panel: Without anti-lift clips, the fixed panel can be lifted out of the track from outside — a serious security vulnerability.
- Use silicone caulk only on exterior joints: Latex caulk degrades in UV and weather. Use only 100% silicone or polyurethane sealant for all exterior joints around the door frame.
- Check the screen door after installation: Screen doors often need roller height adjustment similar to the main sliding panel. Adjust until the screen slides smoothly without binding.
Troubleshooting
The Sliding Panel Drifts Open or Closed on Its Own
The sill is not perfectly level. Adjust the roller height on the low side to effectively tilt the panel slightly against the drift — or, if shims are still accessible, add a shim under the low end of the sill and re-check level.
The Door Is Hard to Open
Clean the sill track thoroughly — sliding doors collect debris in the bottom track that impedes roller travel. Use a stiff brush and vacuum, then apply a thin coat of silicone lubricant to the track. If the door still drags after cleaning and lubricating, lower the roller height (turn adjustment screws counterclockwise) to reduce friction on the track surface.
The Lock Won’t Engage
The lock bolt and strike plate are misaligned. Adjust the roller height on the lock side to raise or lower the sliding panel until the lock bolt aligns with the strike plate opening. If the misalignment is small (less than 1/4 inch), you can also file the strike plate opening slightly larger to compensate.
Frequently Asked Questions
How big of a rough opening do I need for a sliding glass door?
The rough opening is typically the door unit’s nominal width plus 1 inch (for shimming clearance) and the door unit’s nominal height plus 1/2 inch. For a standard 6-foot wide, 6-foot 8-inch tall sliding door, the rough opening would be approximately 73 x 81.5 inches. Always use the specific dimensions from your door unit’s installation instructions — they vary by manufacturer.
Can I install a sliding glass door without removing siding?
If you’re replacing an existing sliding door in the same location, you may not need to remove siding — just the exterior casing and nailing fin. For a new opening, you will need to remove siding and sheathing in the opening area. You may also need to cut back siding on the sides to lap new housewrap properly.
Do I need a permit to install a sliding glass door?
Usually yes, if you’re creating a new opening in an exterior wall. Replacing an existing door in the same opening may not require a permit in some jurisdictions. Check with your local building department before starting work.
How do I maintain a sliding glass door?

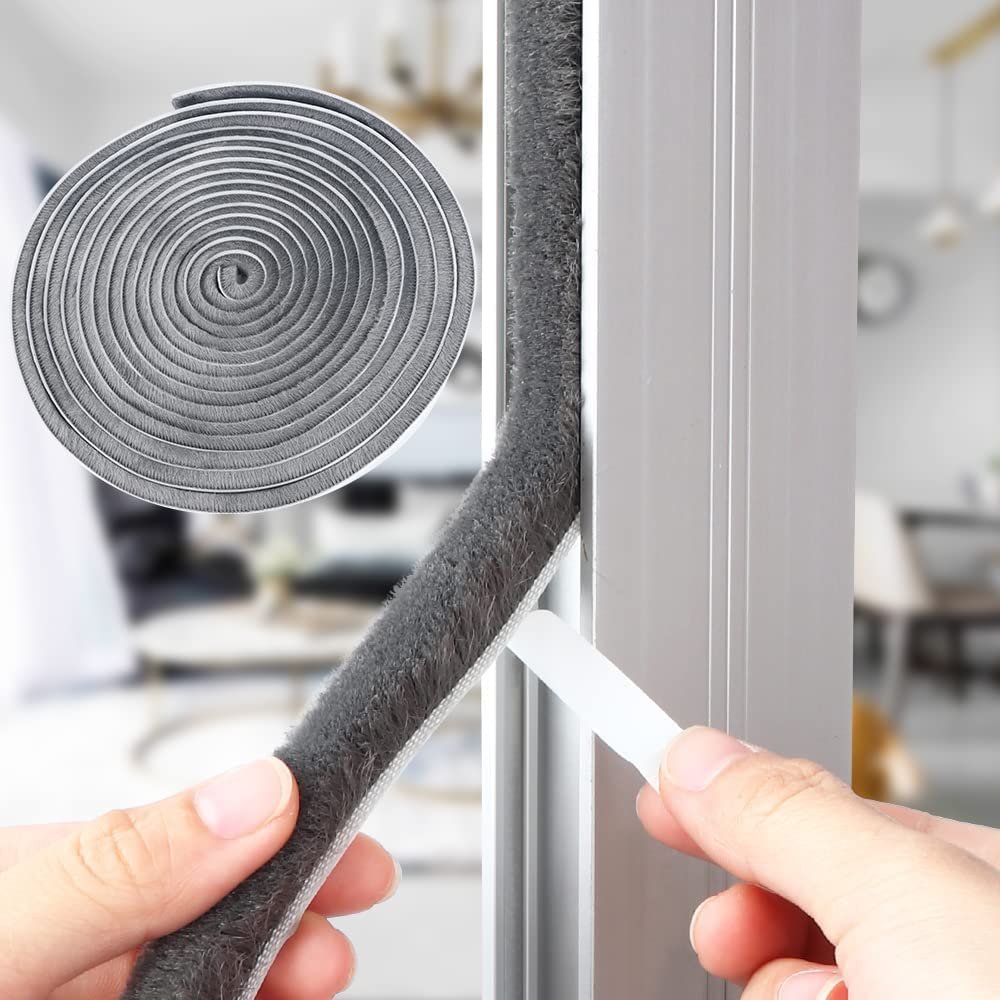

Clean the sill track twice a year with a stiff brush and vacuum. Lubricate the track with silicone spray (not WD-40). Check the weatherstripping along the sides and top annually — replace any compressed or torn sections. Inspect the exterior caulk around the frame every 2–3 years and reapply where cracks appear.
What’s the difference between a sliding glass door and a French door?
A sliding glass door (patio door) has one or two panels that slide horizontally on a track — no swing clearance needed. A French door has two hinged panels that swing open outward or inward. Sliding doors are better for spaces where swing clearance is limited; French doors provide a wider unobstructed opening when fully open.
Conclusion
Installing a sliding glass door comes down to three non-negotiables: a plumb and level frame, a properly flashed and caulked sill, and open drain holes. Get those right and your door will slide smoothly, lock securely, and stay dry for years. The heavy lifting — literally — is the hardest part. Plan your helpers and lifting strategy before the door unit arrives on site.
